Volkslogger Connection Info

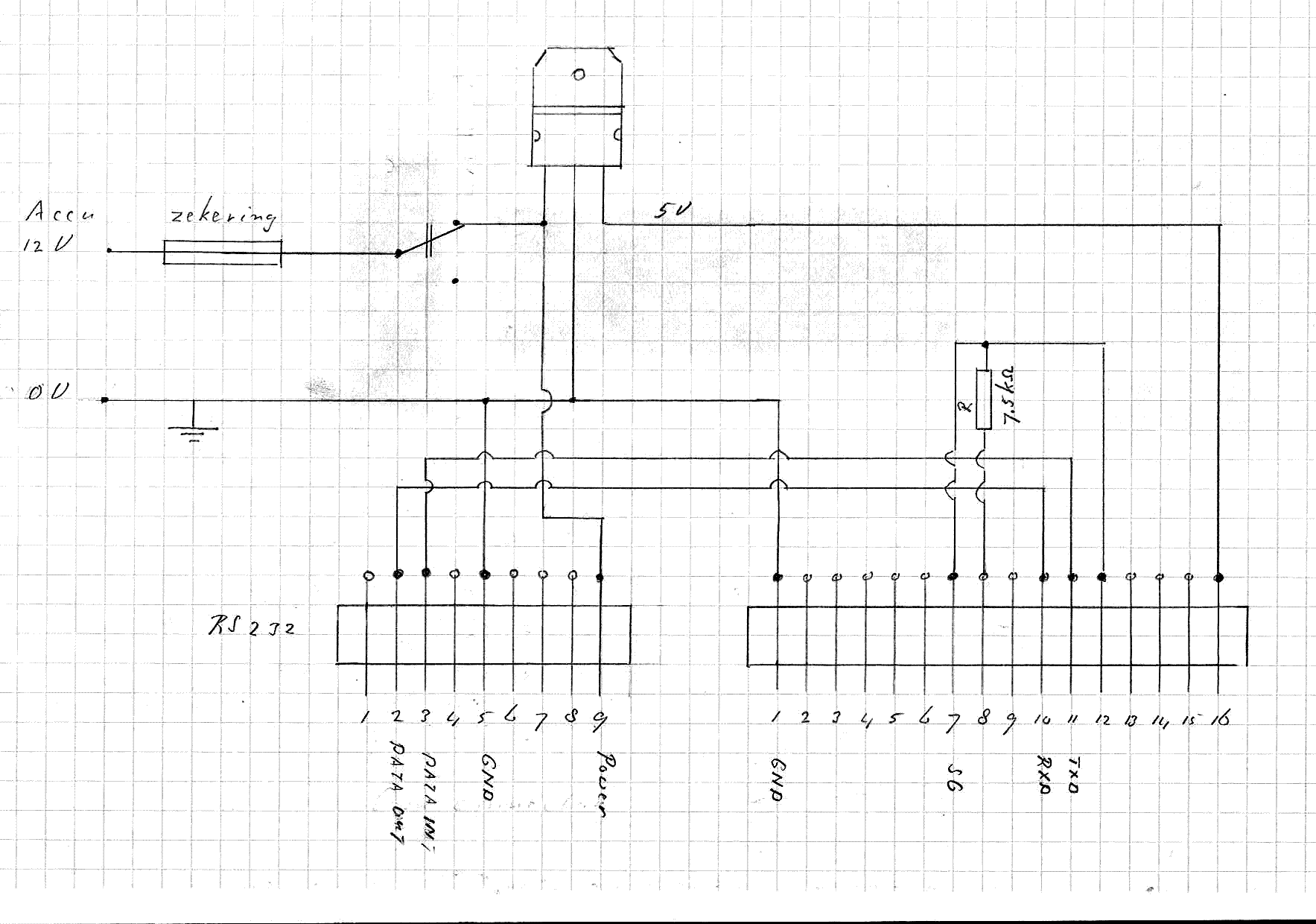

Wiring diagram of connection box for Palm Universal Connector and Volkslogger. The resistor of 7.5 k Ohm is mandatory in order to make OS4 generate signals for a serial port.

Note: To declare tasks or download flights, the Volkslogger must be in PC Transfer mode.
